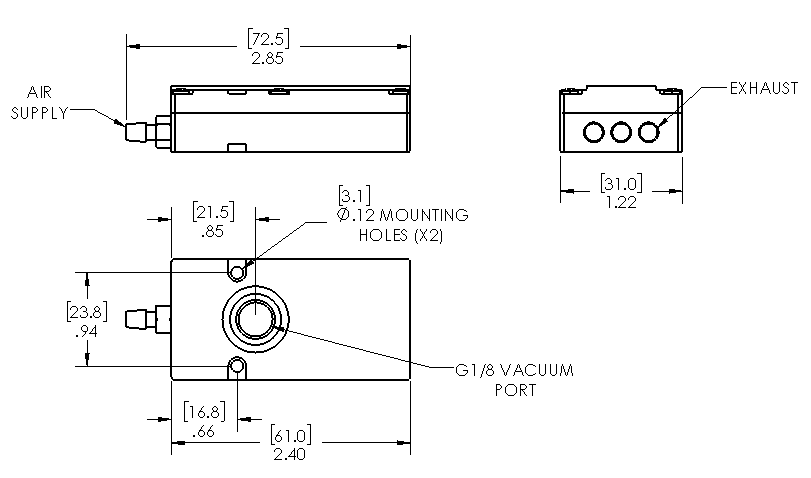

Product DetailsDimensional DrawingParts & Accessories
Quantity:

Item:VM10-NA - Mini multi stage vacuum generator. M5 air inlet,... (Full Description below)
VM10-NA


Item#:VM10-NA
Price: $45.57 (USD) ea.

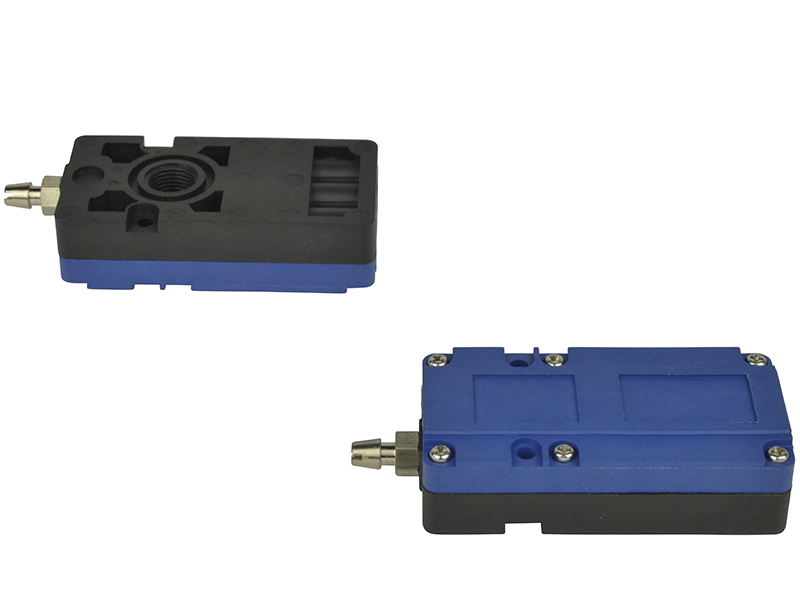

Mini multi stage vacuum generator. M5 air inlet, 1/8 NPSF vacuum port. 2.46 scfm vacuum flow and 25.1 Hg

General Specifications

Vacuum Flow(SCFM):2.5
Vacuum Port:1/8" NPSF
Supply Port:M5
Air Consumption:.99
Max Vac -inHg:": 25
Weight(lbs):0.072


Additional Information


CAD files for this Product

N/A

Vacuum flow(scfm at vac level)Evacuation time(s/cf to vac level)Vacuum flow(Nl/s at vac level)Evacuation time(s/l to vac level)
Supply Press (PSI) Max Vacuum "Hg 0"Hg 3"Hg 6"Hg 9"Hg 12"Hg 15"Hg 18"Hg 21"Hg 24"Hg 27"Hg
65 25.1 2.46 1.43 0.88 0.74 0.63 0.50 0.33 0.18 0.05
